Function Feature:

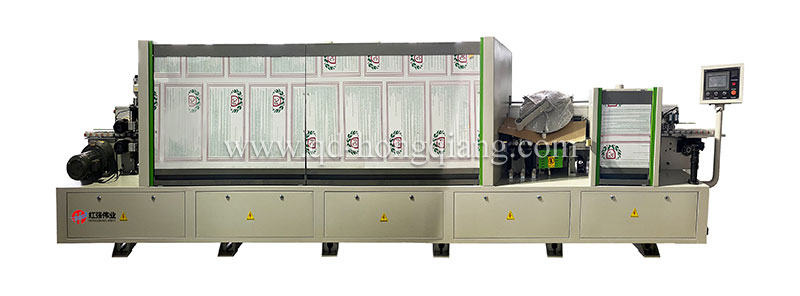

The machine is applied to solid board, fiberboard,shaving boards, etc of straight line edge banding, edge banding material article available solid wood, PVC, melamine, thin veneer, etc.
. Using imported quality engines and electric components
. Serialized products,a wide range of selection by customers.
. High precision and effciency.
Technical Data:
| Thickness of the panel | 10-60mm |
| Edge band thickness | 0.4-3mm |
| Min length of the panel | ≥80mm |
| Min length of the wood | ≥160mm |
| Feeding speed | 12-20m/min |
| Air pressure | 0.6mpa |
| Voltage | 380v,50hz, 3phase |
| Total power | 18kw |
| Packing size | 6800*1100*1600mm |
| Weight | 3000kg |
